The Carbimax ME Series carbide end mills
The Carbimax ME Series carbide end mills are engineered for versatile machining across a wide range of materials, including steel, cast iron, stainless steel, and aluminum.
- Multi-Material Machining: Designed for machining steel, cast iron, stainless steel, and aluminum, offering flexibility across diverse CNC milling applications.
- Advanced Mcoat Coating: Features high-performance Mcoat coating technology to enhance heat resistance and wear resistance under demanding machining conditions.
- Extended Tool Life at Optimized Cutting Speeds: Designed for reliable, long-lasting cutting performance at cutting speeds (Vc) of 40–150 m/min on CNC milling machines, depending on the workpiece material and machining conditions.

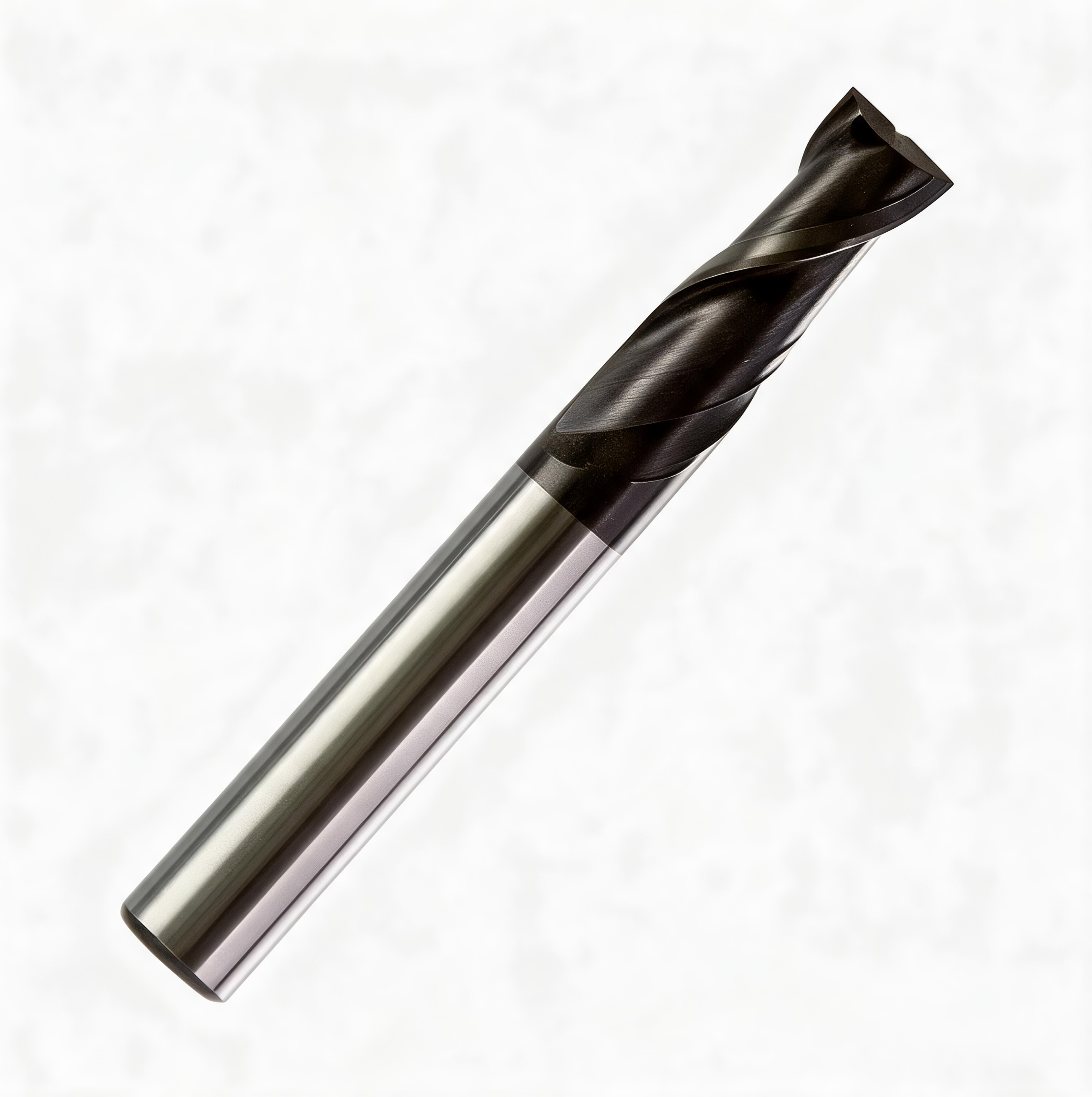

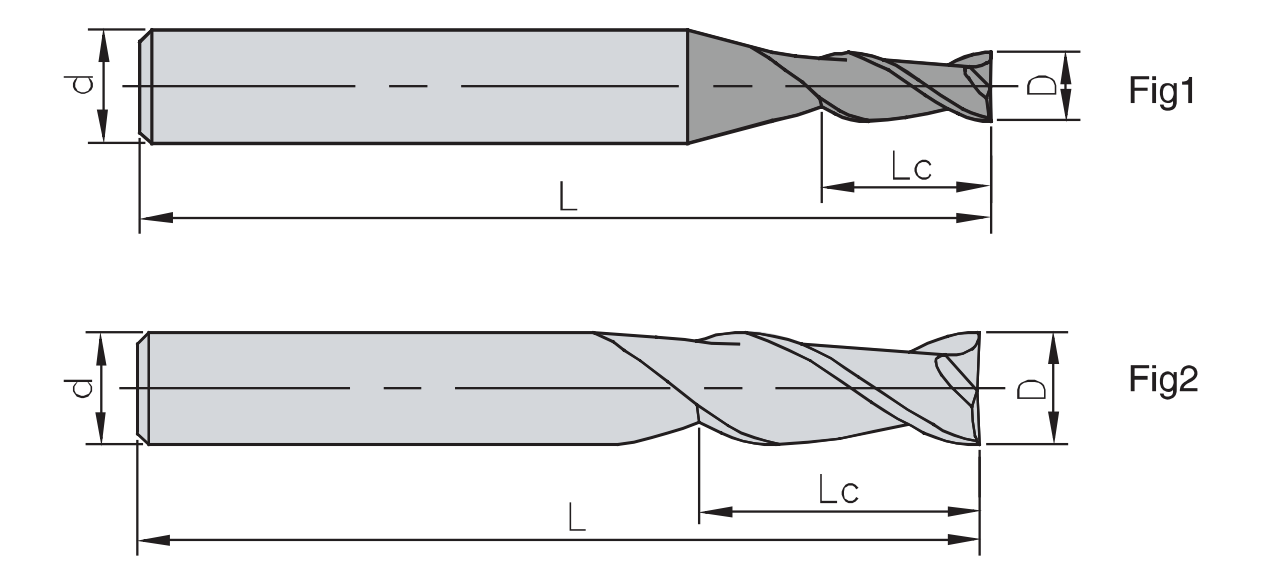

ME-2FRR
2-Flute Flat End Mill — Solid Carbide
Series ME-2FRR · Square / flat end · Metric sizes Ø0.3–20 mm
h6Shank Tol.
2FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers40 sizes
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-2FRR-00301 | 0.3 | 0.9 | 50 | 4 |
| ME-2FRR-60301 | 0.3 | 0.9 | 50 | 6 |
| ME-2FRR-00501 | 0.5 | 1.5 | 50 | 4 |
| ME-2FRR-60501 | 0.5 | 1.5 | 50 | 6 |
| ME-2FRR-00601 | 0.6 | 1.8 | 50 | 4 |
| ME-2FRR-60601 | 0.6 | 1.8 | 50 | 6 |
| ME-2FRR-00802 | 0.8 | 2.4 | 50 | 4 |
| ME-2FRR-60802 | 0.8 | 2.4 | 50 | 6 |
| ME-2FRR-01003 | 1 | 3 | 50 | 4 |
| ME-2FRR-01504 | 1.5 | 4 | 50 | 4 |
| ME-2FRR-02006 | 2 | 6 | 50 | 4 |
| ME-2FRR-02506 | 2.5 | 6 | 50 | 4 |
| ME-2FRR-02508 | 2.5 | 8 | 50 | 4 |
| ME-2FRR-03009 | 3 | 9 | 50 | 4 |
| ME-2FRR-63009 | 3 | 9 | 50 | 6 |
| ME-2FRR-03509 | 3.5 | 9 | 50 | 4 |
| ME-2FRR-63509 | 3.5 | 9 | 50 | 6 |
| ME-2FRR-04011 | 4 | 11 | 50 | 4 |
| ME-2FRR-64011 | 4 | 11 | 50 | 6 |
| ME-2FRR-04511 | 4.5 | 11 | 50 | 6 |
| ME-2FRR-05013 | 5 | 13 | 50 | 6 |
| ME-2FRR-06016 | 6 | 16 | 50 | 6 |
| ME-2FRR-06516 | 6.5 | 16 | 60 | 8 |
| ME-2FRR-07020 | 7 | 20 | 60 | 8 |
| ME-2FRR-07520 | 7.5 | 20 | 60 | 8 |
| ME-2FRR-08020 | 8 | 20 | 60 | 8 |
| ME-2FRR-08523 | 8.5 | 23 | 75 | 10 |
| ME-2FRR-09023 | 9 | 23 | 75 | 10 |
| ME-2FRR-09525 | 9.5 | 25 | 75 | 10 |
| ME-2FRR-10025 | 10 | 25 | 75 | 10 |
| ME-2FRR-10526 | 10.5 | 26 | 75 | 12 |
| ME-2FRR-11028 | 11 | 28 | 75 | 12 |
| ME-2FRR-12030 | 12 | 30 | 75 | 12 |
| ME-2FRR-14034 | 14 | 34 | 100 | 14 |
| ME-2FRR-15036 | 15 | 36 | 90 | 16 |
| ME-2FRR-16036 | 16 | 36 | 100 | 16 |
| ME-2FRR-17040 | 17 | 40 | 100 | 20 |
| ME-2FRR-18040 | 18 | 40 | 100 | 18 |
| ME-2FRR-19040 | 19 | 40 | 100 | 20 |
| ME-2FRR-20045 | 20 | 45 | 100 | 20 |

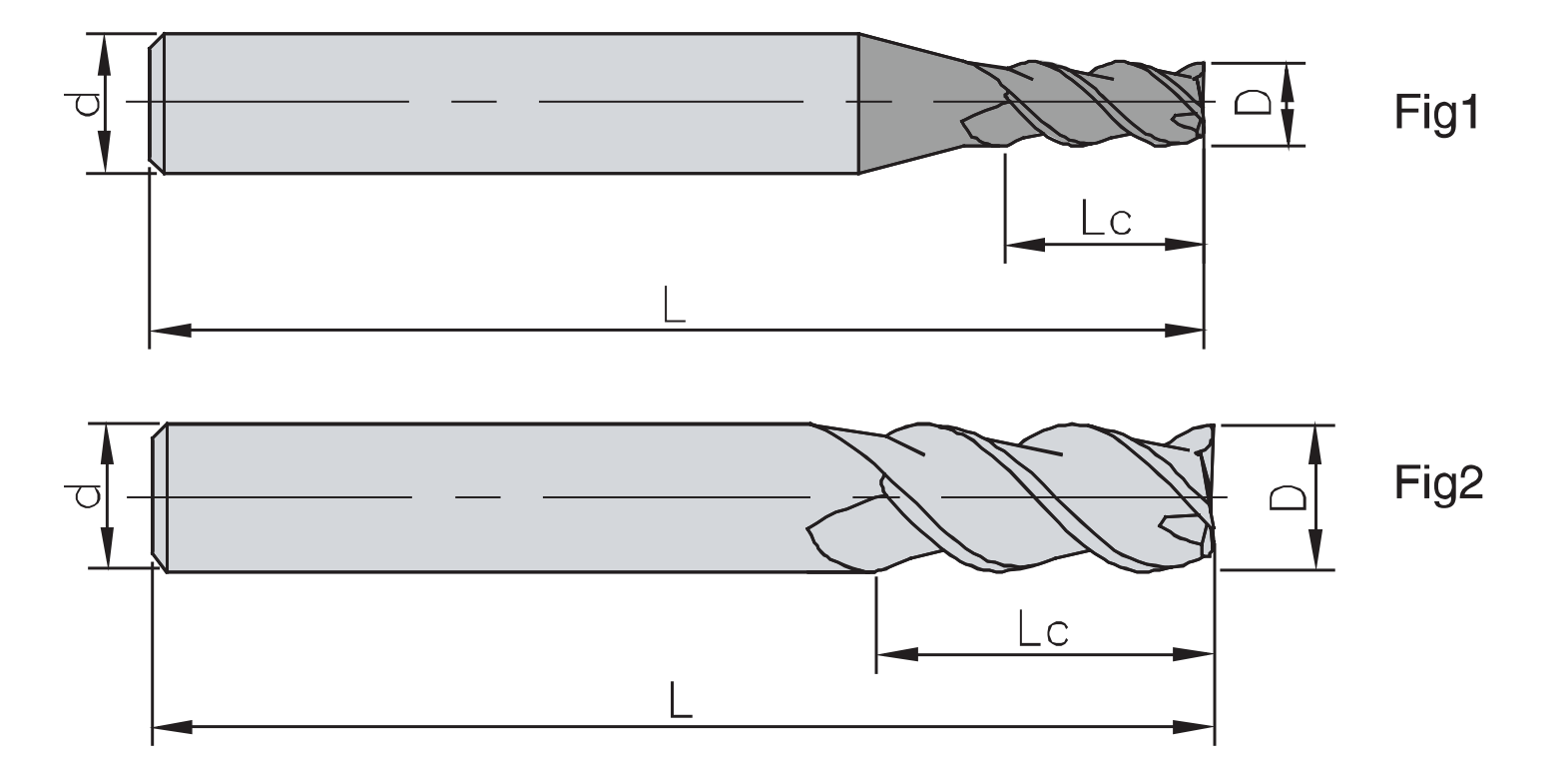

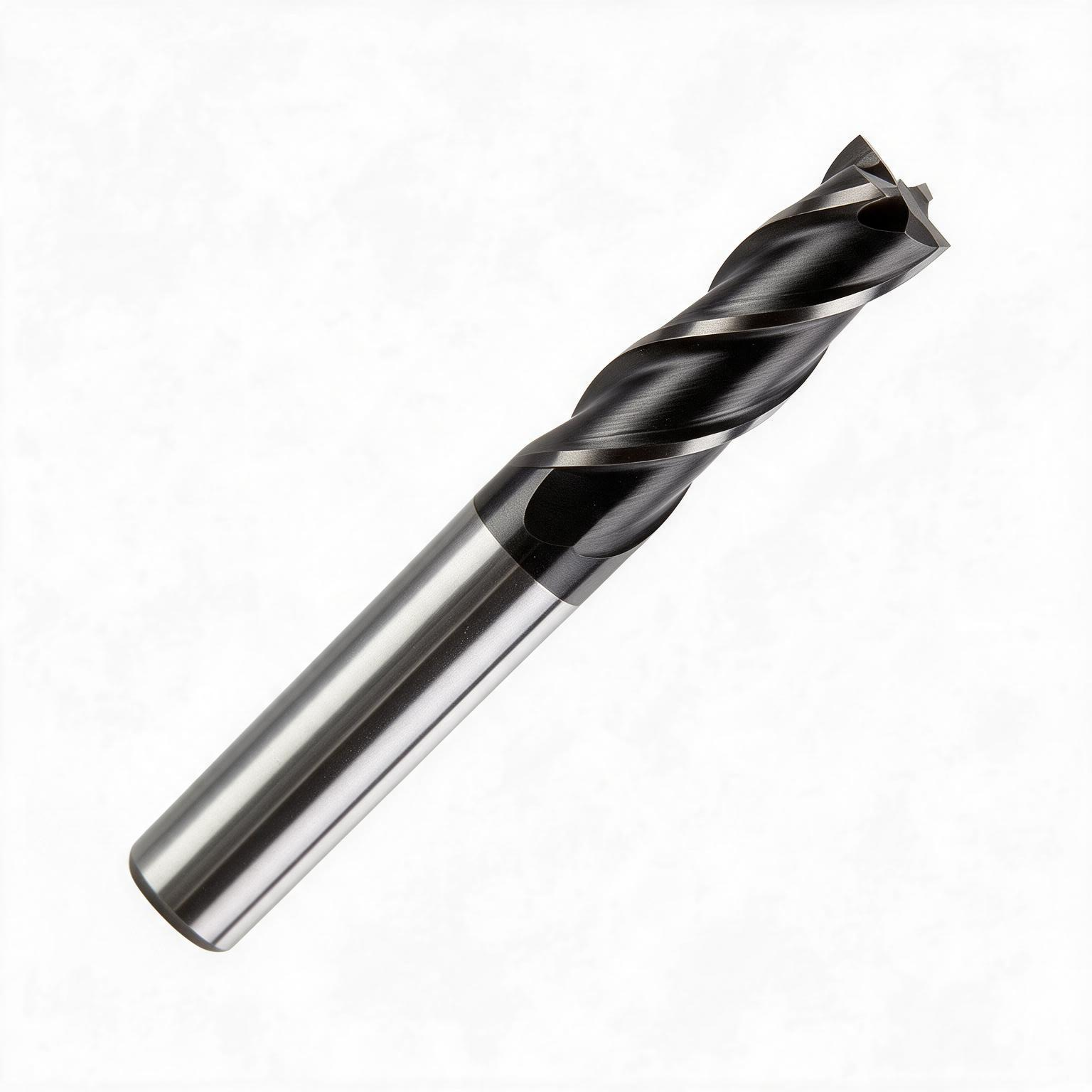

ME-3FRR
3-Flute Flat End Mill — Solid Carbide
Series ME-3FRR · Square / flat end · Metric sizes Ø2–25 mm
h6Shank Tol.
3FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers14 sizes
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-3FRR-02006 | 2 | 6 | 50 | 4 |
| ME-3FRR-03009 | 3 | 9 | 50 | 4 |
| ME-3FRR-04011 | 4 | 11 | 50 | 4 |
| ME-3FRR-05013 | 5 | 13 | 50 | 6 |
| ME-3FRR-06016 | 6 | 16 | 50 | 6 |
| ME-3FRR-06516 | 6.5 | 16 | 60 | 8 |
| ME-3FRR-08020 | 8 | 20 | 60 | 8 |
| ME-3FRR-09524 | 9.5 | 24 | 75 | 10 |
| ME-3FRR-10025 | 10 | 25 | 75 | 10 |
| ME-3FRR-12030 | 12 | 30 | 75 | 12 |
| ME-3FRR-16036 | 16 | 36 | 100 | 16 |
| ME-3FRR-18040 | 18 | 40 | 100 | 18 |
| ME-3FRR-20045 | 20 | 45 | 100 | 20 |
| ME-3FRR-25050 | 25 | 50 | 100 | 25 |

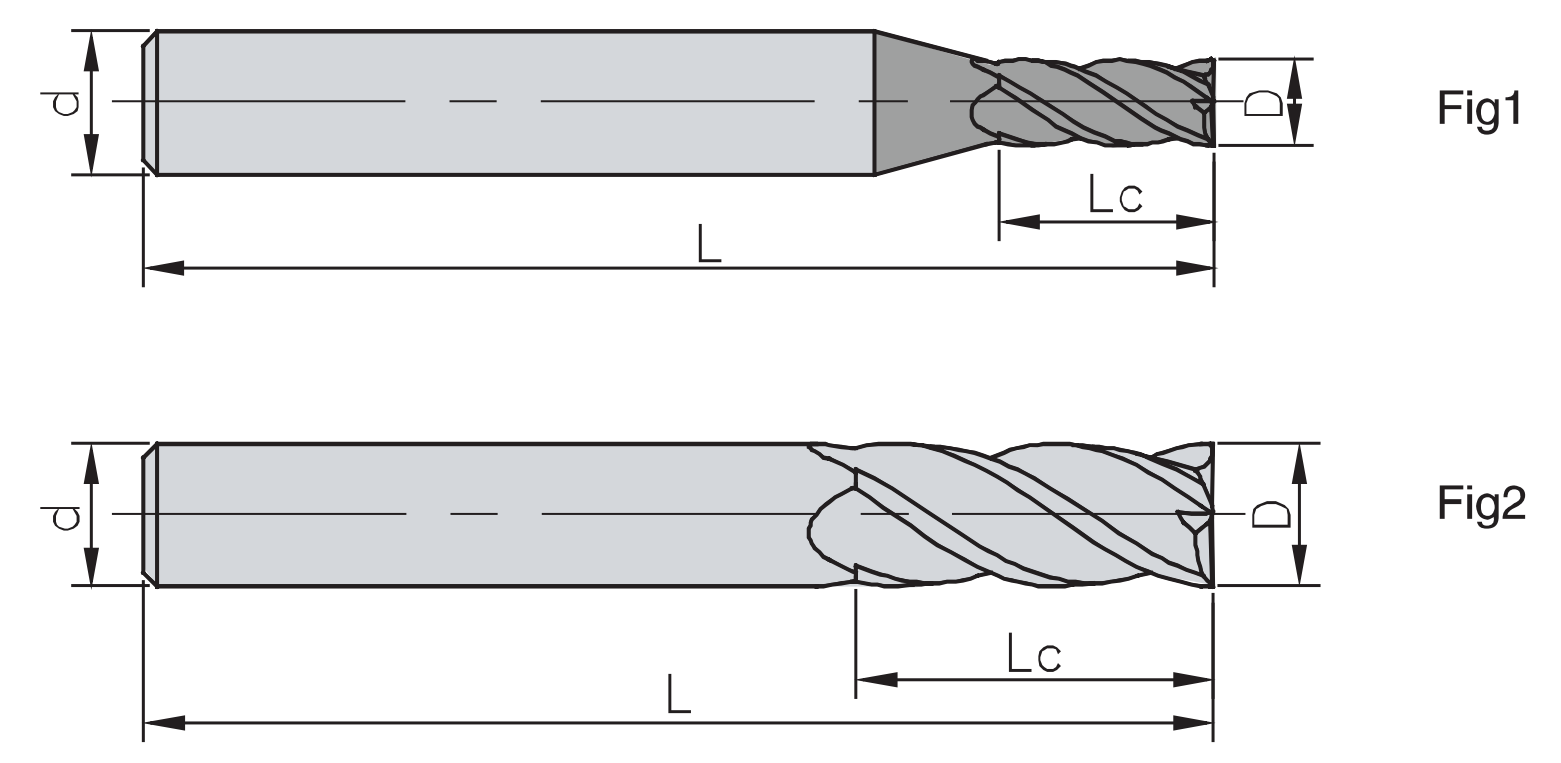

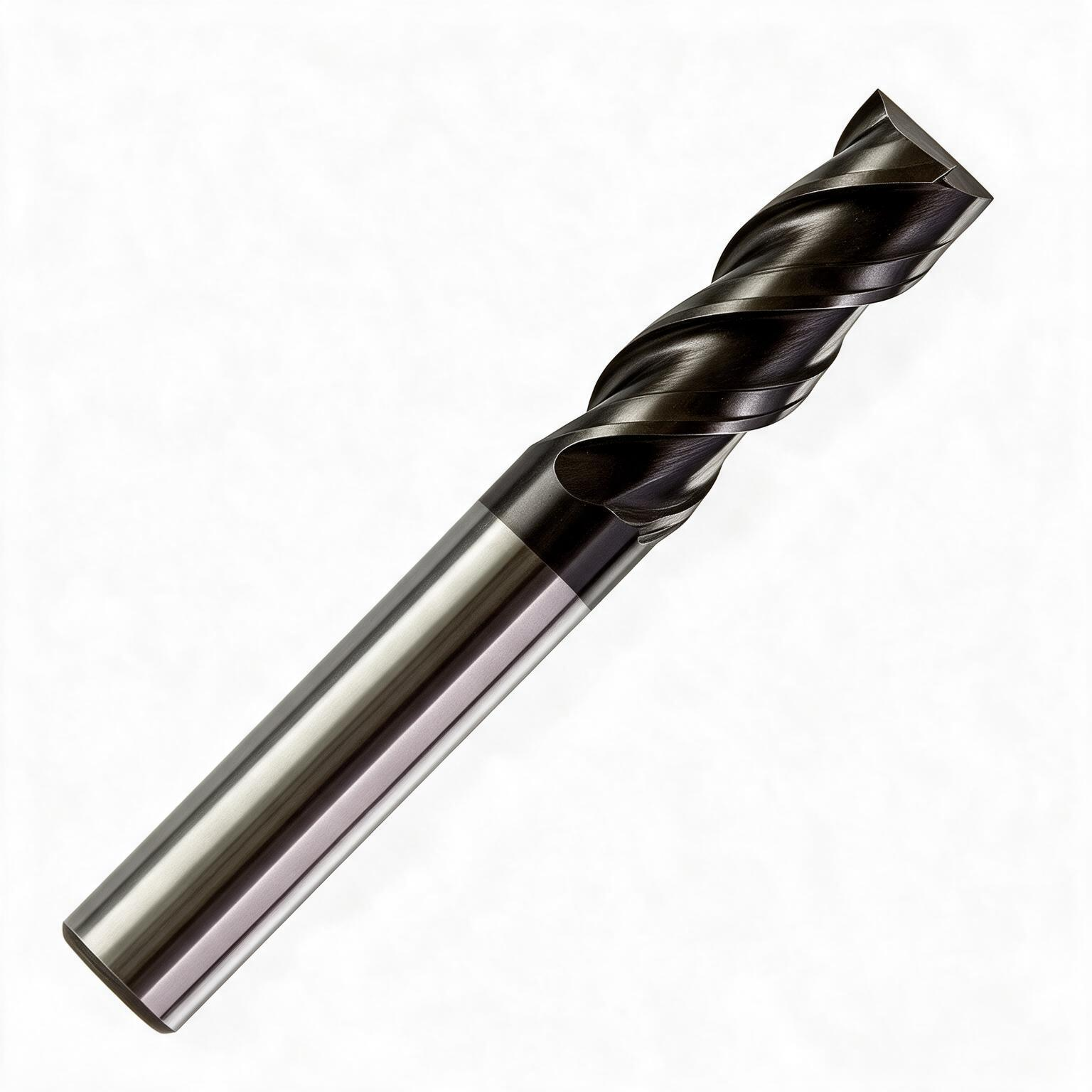

ME-4FRR
4-Flute Flat End Mill — Solid Carbide
Series ME-4FRR · Square / flat end · Metric sizes Ø1–20 mm
h6Shank Tol.
4FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers39 sizes
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-4FRR-01003 | 1 | 3 | 50 | 4 |
| ME-4FRR-01505 | 1.5 | 5 | 50 | 4 |
| ME-4FRR-61505 | 1.5 | 5 | 50 | 6 |
| ME-4FRR-02006 | 2 | 6 | 50 | 4 |
| ME-4FRR-62006 | 2 | 6 | 50 | 6 |
| ME-4FRR-02508 | 2.5 | 8 | 50 | 4 |
| ME-4FRR-62508 | 2.5 | 8 | 50 | 6 |
| ME-4FRR-63006 | 3 | 6 | 50 | 6 |
| ME-4FRR-03009 | 3 | 9 | 50 | 4 |
| ME-4FRR-63009 | 3 | 9 | 50 | 6 |
| ME-4FRR-03511 | 3.5 | 11 | 50 | 4 |
| ME-4FRR-63509 | 3.5 | 9 | 50 | 6 |
| ME-4FRR-04011 | 4 | 11 | 50 | 4 |
| ME-4FRR-64011 | 4 | 11 | 50 | 6 |
| ME-4FRR-04511 | 4.5 | 11 | 50 | 6 |
| ME-4FRR-05008 | 5 | 8 | 50 | 6 |
| ME-4FRR-05013 | 5 | 13 | 50 | 6 |
| ME-4FRR-05516 | 5.5 | 16 | 50 | 6 |
| ME-4FRR-06016 | 6 | 16 | 50 | 6 |
| ME-4FRR-06516 | 6.5 | 16 | 60 | 8 |
| ME-4FRR-07020 | 7 | 20 | 60 | 8 |
| ME-4FRR-07520 | 7.5 | 20 | 60 | 8 |
| ME-4FRR-08020 | 8 | 20 | 60 | 8 |
| ME-4FRR-08523 | 8.5 | 23 | 75 | 10 |
| ME-4FRR-09023 | 9 | 23 | 75 | 10 |
| ME-4FRR-09525 | 9.5 | 25 | 75 | 10 |
| ME-4FRR-10025 | 10 | 25 | 75 | 10 |
| ME-4FRR-11028 | 11 | 28 | 75 | 12 |
| ME-4FRR-12030 | 12 | 30 | 75 | 12 |
| ME-4FRR-13032 | 13 | 32 | 100 | 14 |
| ME-4FRR-14032 | 14 | 32 | 75 | 14 |
| ME-4FRR-14034 | 14 | 34 | 100 | 14 |
| ME-4FRR-15036 | 15 | 36 | 100 | 16 |
| ME-4FRR-16036 | 16 | 36 | 100 | 16 |
| ME-4FRR-16040 | 16 | 40 | 100 | 16 |
| ME-4FRR-16045 | 16 | 45 | 100 | 16 |
| ME-4FRR-17038 | 17 | 38 | 100 | 18 |
| ME-4FRR-18045 | 18 | 45 | 100 | 18 |
| ME-4FRR-20045 | 20 | 45 | 100 | 20 |

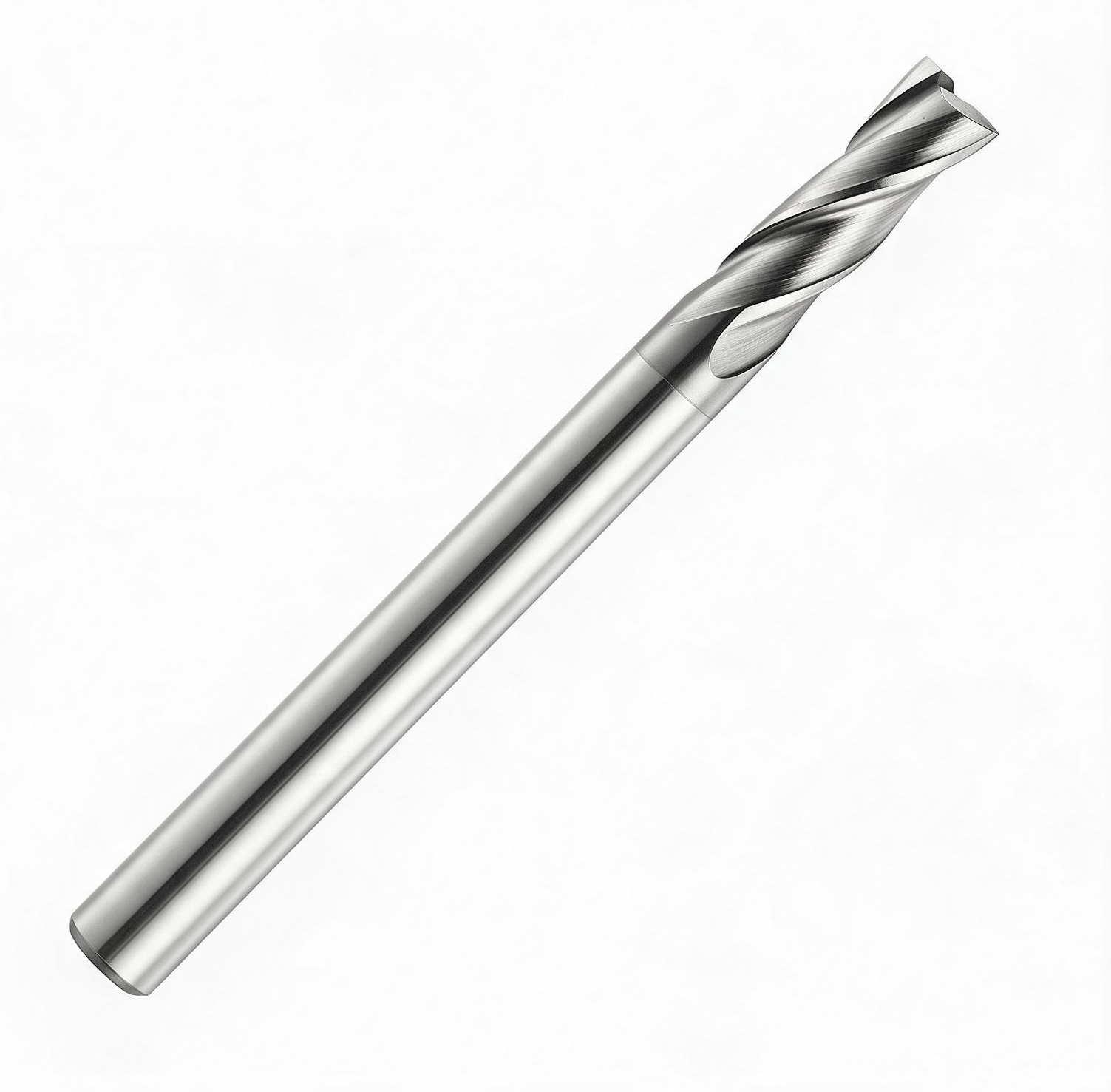

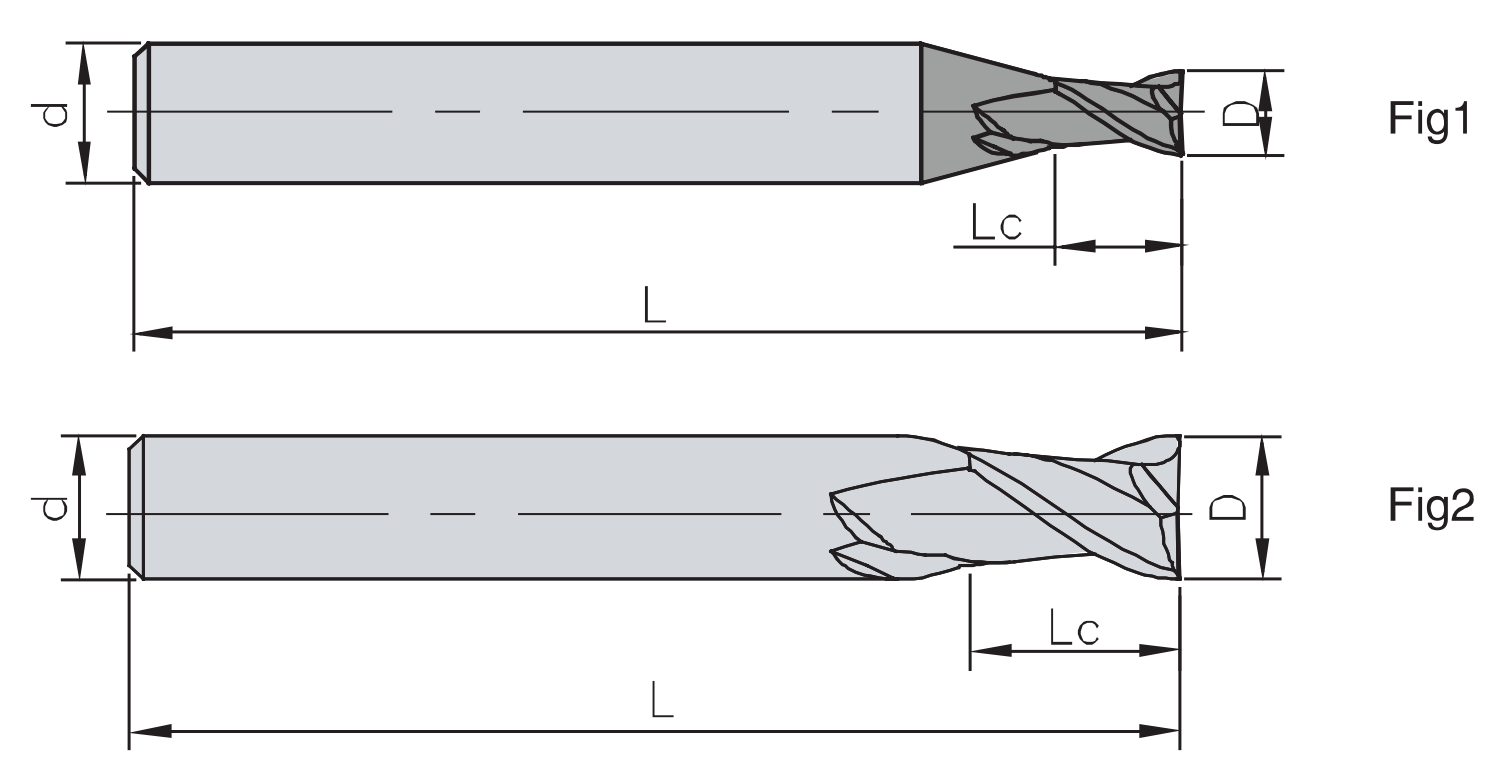

ME-2FSR
2-Flute Stub Length End Mill — Solid Carbide
Series ME-2FSR · Square / flat end · Stub length · Metric sizes Ø1–16 mm
h6Shank Tol.
2FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers13 sizes · Ø1–16 mm
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-2FSR-01002 | 1 | 2 | 50 | 4 |
| ME-2FSR-01502 | 1.5 | 2 | 50 | 4 |
| ME-2FSR-02003 | 2 | 3 | 50 | 4 |
| ME-2FSR-02504 | 2.5 | 4 | 50 | 4 |
| ME-2FSR-03005 | 3 | 5 | 50 | 4 |
| ME-2FSR-04006 | 4 | 6 | 50 | 4 |
| ME-2FSR-05008 | 5 | 8 | 50 | 6 |
| ME-2FSR-06009 | 6 | 9 | 50 | 6 |
| ME-2FSR-07010 | 7 | 10 | 60 | 8 |
| ME-2FSR-08012 | 8 | 12 | 60 | 8 |
| ME-2FSR-10015 | 10 | 15 | 75 | 10 |
| ME-2FSR-12018 | 12 | 18 | 75 | 12 |
| ME-2FSR-16024 | 16 | 24 | 100 | 16 |

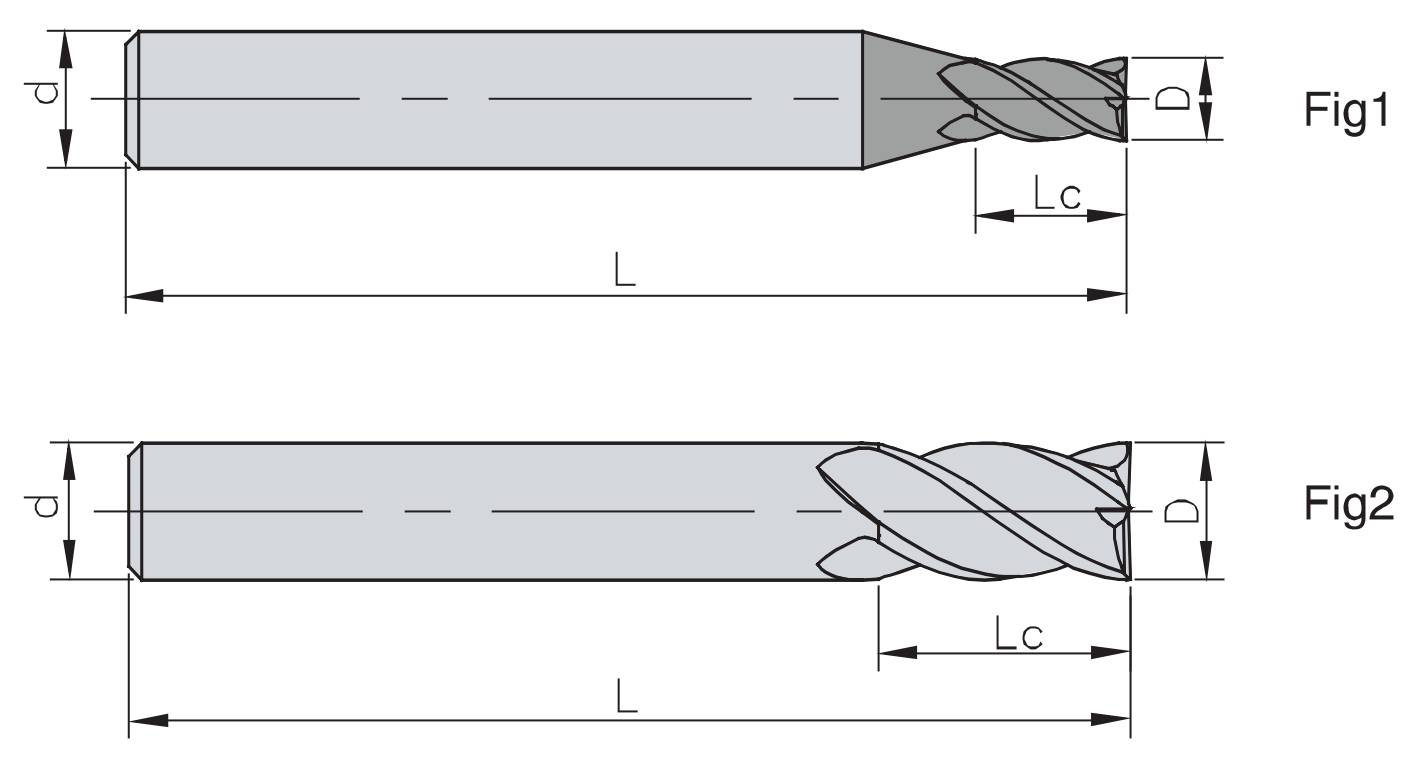

ME-4FSR
4-Flute Stub Length End Mill — Solid Carbide
Series ME-4FSR · Square / flat end · Stub length · Metric sizes Ø1–16 mm
h6Shank Tol.
4FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers13 sizes · Ø1–16 mm
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-4FSR-01002 | 1 | 2 | 50 | 4 |
| ME-4FSR-01502 | 1.5 | 2 | 50 | 4 |
| ME-4FSR-02003 | 2 | 3 | 50 | 4 |
| ME-4FSR-02504 | 2.5 | 4 | 50 | 4 |
| ME-4FSR-03005 | 3 | 5 | 50 | 4 |
| ME-4FSR-04006 | 4 | 6 | 50 | 4 |
| ME-4FSR-05008 | 5 | 8 | 50 | 6 |
| ME-4FSR-06009 | 6 | 9 | 50 | 6 |
| ME-4FSR-07010 | 7 | 10 | 60 | 8 |
| ME-4FSR-08012 | 8 | 12 | 60 | 8 |
| ME-4FSR-10015 | 10 | 15 | 75 | 10 |
| ME-4FSR-12018 | 12 | 18 | 75 | 12 |
| ME-4FSR-16024 | 16 | 24 | 100 | 16 |

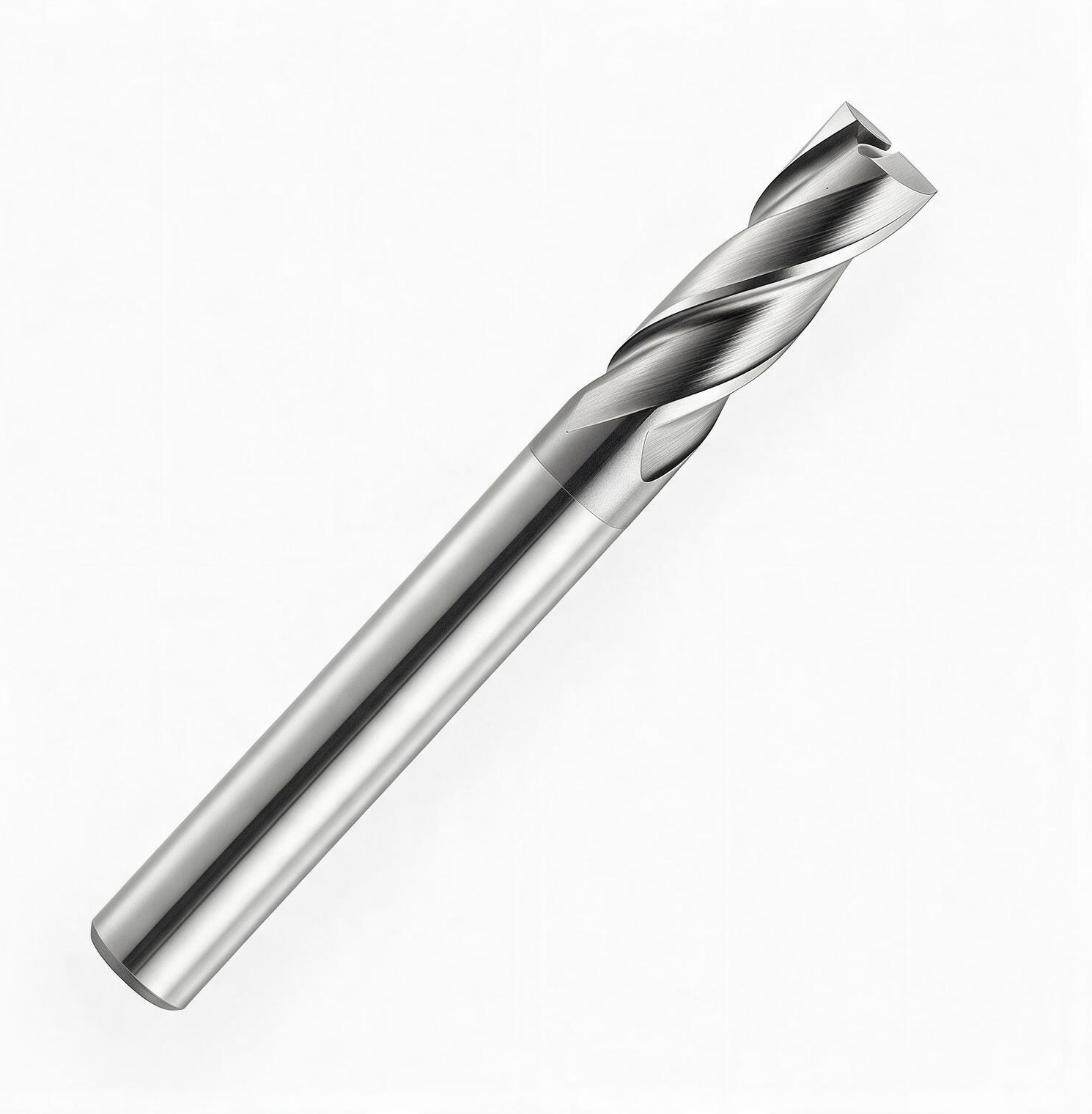

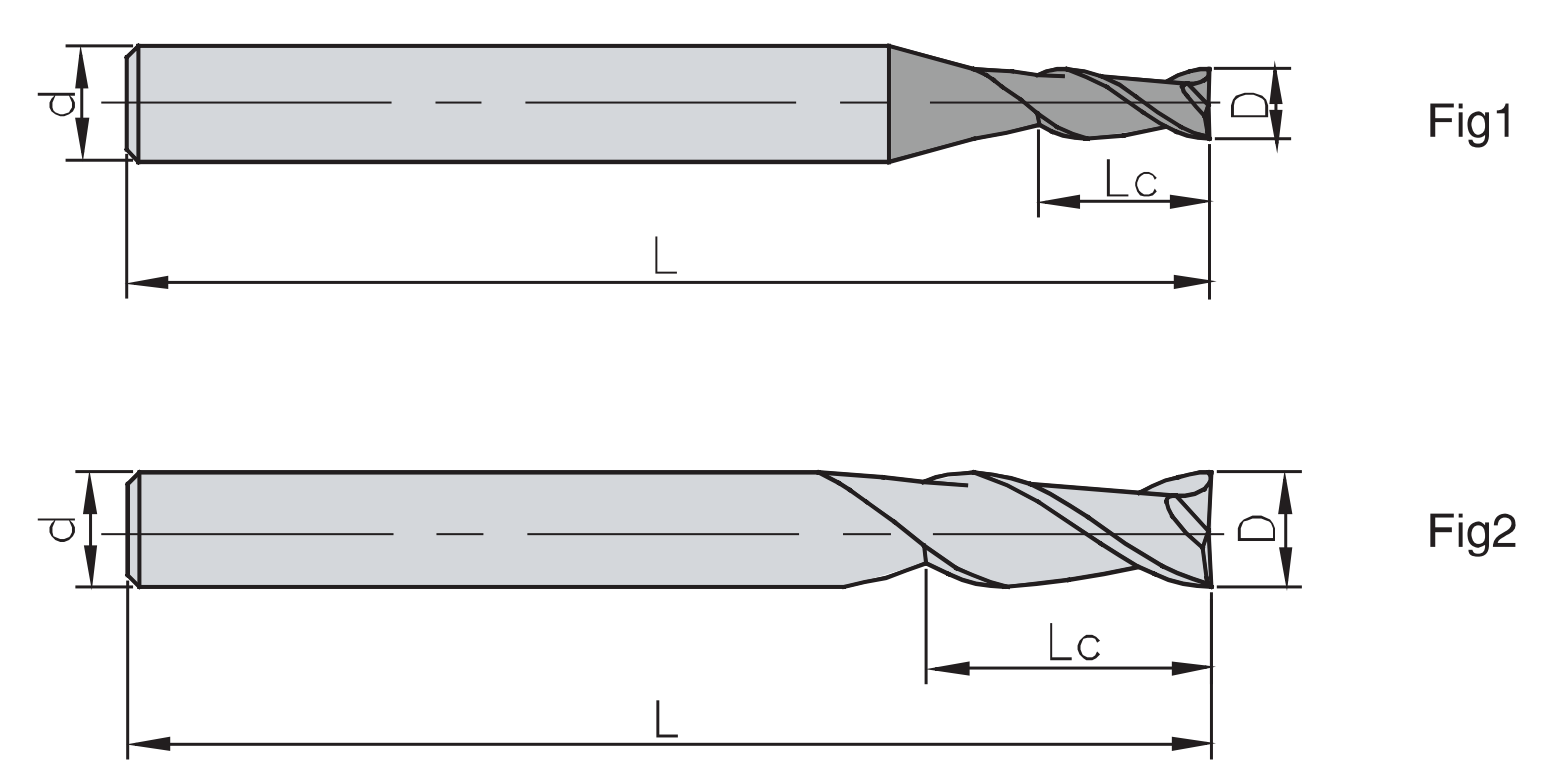

ME-2FRL
2-Flute Long Shank End Mill — Solid Carbide
Series ME-2FRL · Square / flat end · Long shank length · Metric sizes Ø2–20 mm
h6Shank Tol.
2FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers13 sizes · Ø2–20 mm
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-2FRL-02006 | 2 | 6 | 75 | 4 |
| ME-2FRL-03009 | 3 | 9 | 75 | 4 |
| ME-2FRL-63012 | 3 | 12 | 75 | 6 |
| ME-2FRL-04011 | 4 | 11 | 75 | 4 |
| ME-2FRL-05020 | 5 | 20 | 75 | 6 |
| ME-2FRL-06016 | 6 | 16 | 100 | 6 |
| ME-2FRL-06020 | 6 | 20 | 100 | 6 |
| ME-2FRL-08020 | 8 | 20 | 75 | 8 |
| ME-2FRL-08025 | 8 | 25 | 100 | 8 |
| ME-2FRL-10030 | 10 | 30 | 100 | 10 |
| ME-2FRL-12035 | 12 | 35 | 100 | 12 |
| ME-2FRL-16036 | 16 | 36 | 150 | 16 |
| ME-2FRL-20045 | 20 | 45 | 150 | 20 |

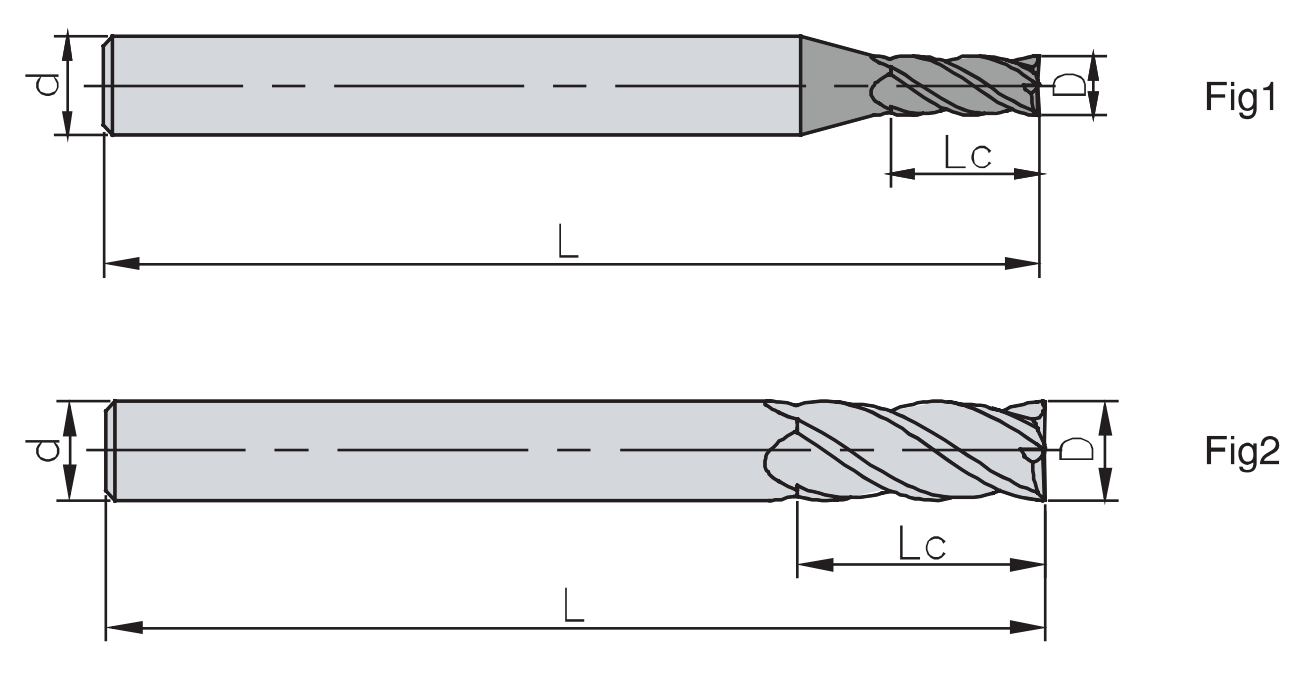

ME-4FRL
4-Flute Long Shank End Mill — Solid Carbide
Series ME-4FRL · Square / flat end · Long shank length · Metric sizes Ø2–20 mm
h6Shank Tol.
4FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers14 sizes · Ø2–20 mm
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-4FRL-02010 | 2 | 10 | 75 | 4 |
| ME-4FRL-03012 | 3 | 12 | 75 | 4 |
| ME-4FRL-04011 | 4 | 11 | 75 | 4 |
| ME-4FRL-04015 | 4 | 15 | 75 | 4 |
| ME-4FRL-05020 | 5 | 20 | 75 | 6 |
| ME-4FRL-06016 | 6 | 16 | 75 | 6 |
| ME-4FRL-06020 | 6 | 20 | 75 | 6 |
| ME-4FRL-08020 | 8 | 20 | 75 | 8 |
| ME-4FRL-08025 | 8 | 25 | 100 | 8 |
| ME-4FRL-10030 | 10 | 30 | 100 | 10 |
| ME-4FRL-10035 | 10 | 35 | 100 | 10 |
| ME-4FRL-12035 | 12 | 35 | 100 | 12 |
| ME-4FRL-16036 | 16 | 36 | 150 | 16 |
| ME-4FRL-20045 | 20 | 45 | 150 | 20 |

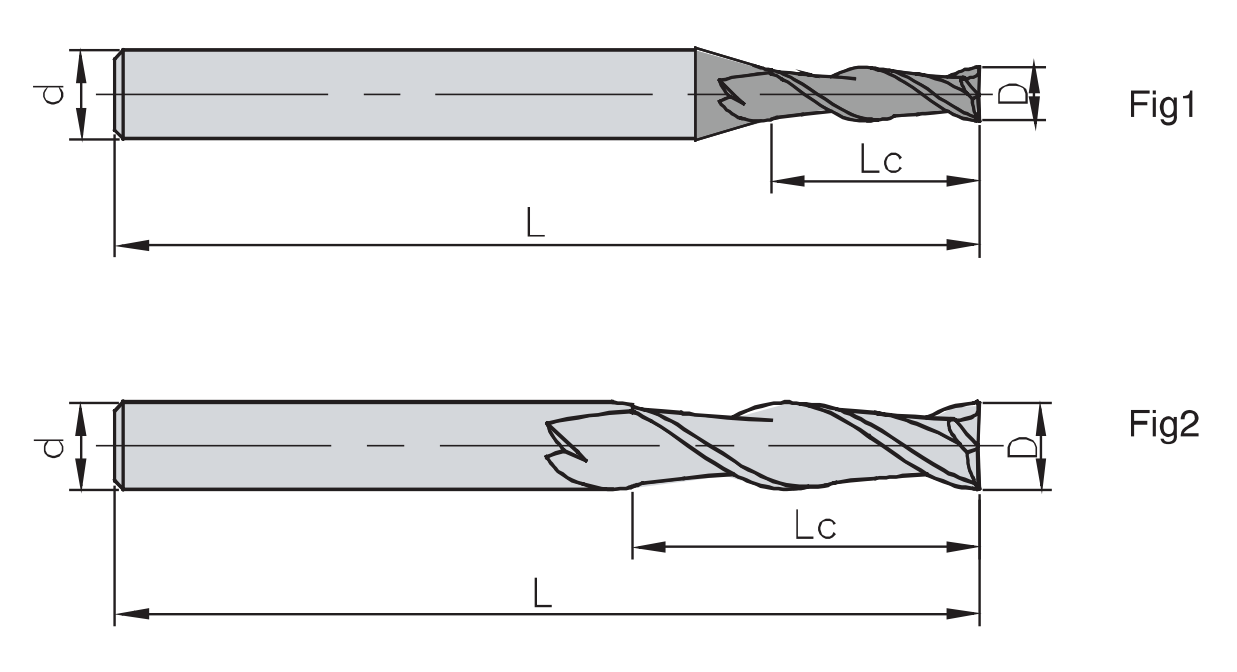

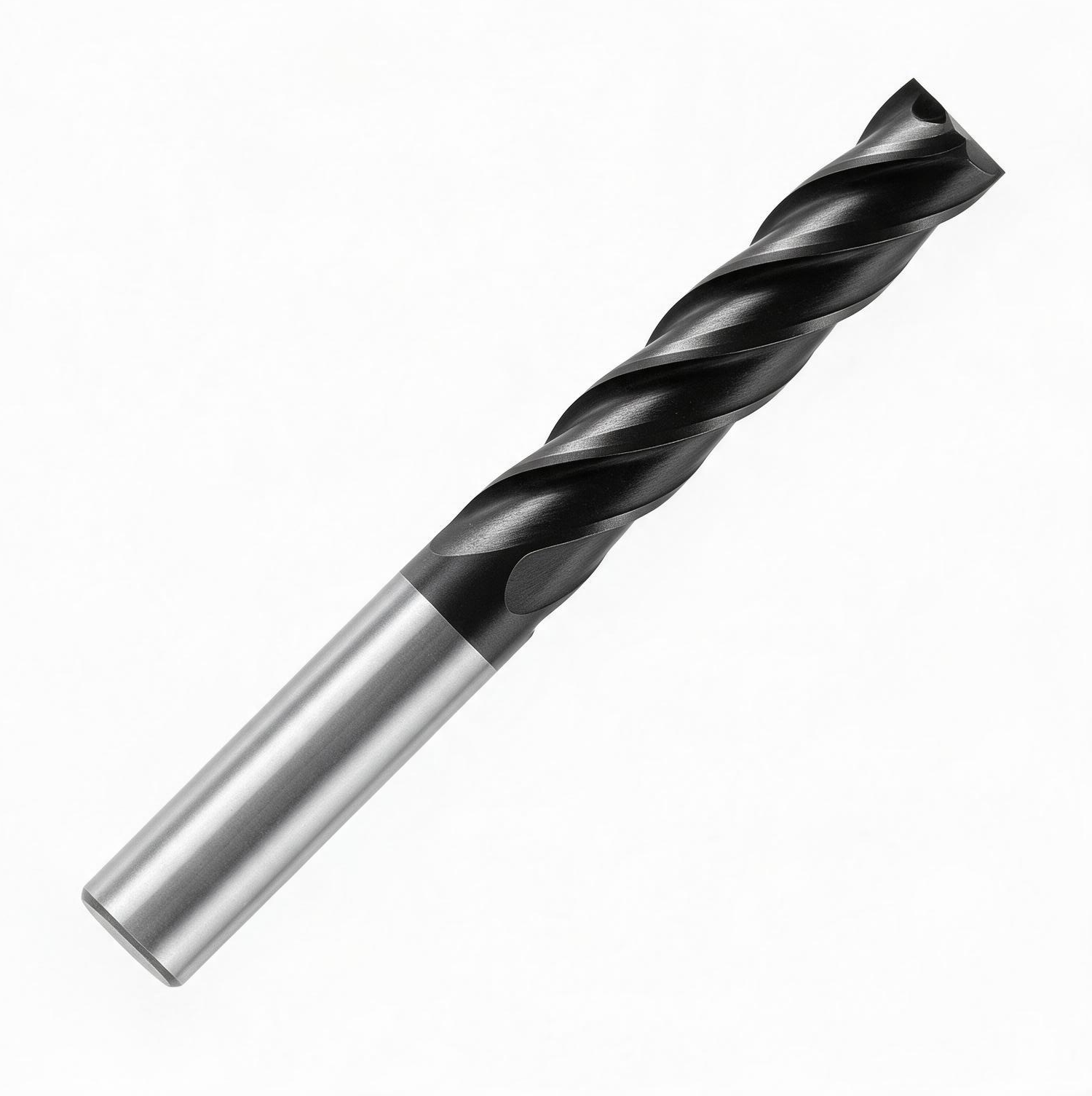

ME-2FLR
2-Flute Flat End Mill — Long Flute Length
Series ME-2FLR · Square / flat end · Metric sizes Ø2–20 mm
h6Shank Tol.
2FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers13 sizes
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-2FLR-02015 | 2 | 15 | 75 | 4 |
| ME-2FLR-03025 | 3 | 25 | 75 | 4 |
| ME-2FLR-04030 | 4 | 30 | 75 | 4 |
| ME-2FLR-05030 | 5 | 30 | 75 | 6 |
| ME-2FLR-06035 | 6 | 35 | 75 | 6 |
| ME-2FLR-08040 | 8 | 40 | 100 | 8 |
| ME-2FLR-10045 | 10 | 45 | 100 | 10 |
| ME-2FLR-12050 | 12 | 50 | 100 | 12 |
| ME-2FLR-14055 | 14 | 55 | 100 | 14 |
| ME-2FLR-16050 | 16 | 50 | 150 | 16 |
| ME-2FLR-16060 | 16 | 60 | 150 | 16 |
| ME-2FLR-18065 | 18 | 65 | 150 | 18 |
| ME-2FLR-20070 | 20 | 70 | 150 | 20 |

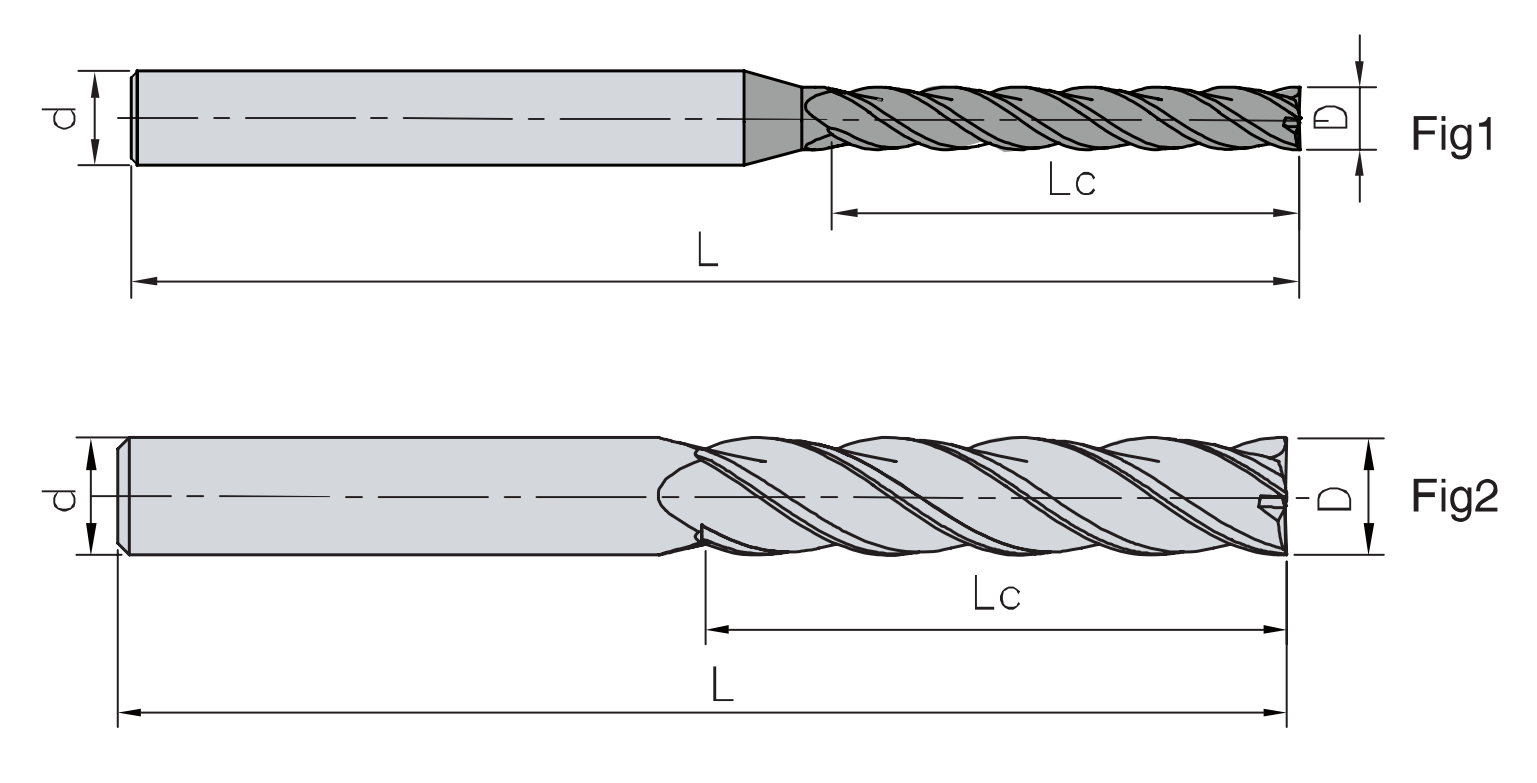

ME-4FLR
4-Flute Flat End Mill — Long Flute Length
Series ME-4FLR · Square / flat end · Metric sizes Ø1–20 mm
h6Shank Tol.
4FFlutes
MCoatCoating
35°Helix
MC1220Substrate
| Mill dia. D ≤ 12 | 0 / −0.02 |
| Mill dia. D > 12 | 0 / −0.03 |
| Shank dia. d | h6 |
Dimensions & Part Numbers23 sizes
| Part No. | Dimensions (mm) | |||
|---|---|---|---|---|
| Mill Dia. D |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-4FLR-01004 | 1 | 4 | 50 | 4 |
| ME-4FLR-02010 | 2 | 10 | 50 | 4 |
| ME-4FLR-03015 | 3 | 15 | 60 | 4 |
| ME-4FLR-63015 | 3 | 15 | 60 | 6 |
| ME-4FLR-04020 | 4 | 20 | 60 | 4 |
| ME-4FLR-64020 | 4 | 20 | 75 | 6 |
| ME-4FLR-04030 | 4 | 30 | 75 | 4 |
| ME-4FLR-05025 | 5 | 25 | 75 | 6 |
| ME-4FLR-05030 | 5 | 30 | 75 | 6 |
| ME-4FLR-06030 | 6 | 30 | 75 | 6 |
| ME-4FLR-06035 | 6 | 35 | 75 | 6 |
| ME-4FLR-08035 | 8 | 35 | 100 | 8 |
| ME-4FLR-08040 | 8 | 40 | 100 | 8 |
| ME-4FLR-10045 | 10 | 45 | 100 | 10 |
| ME-4FLR-10050 | 10 | 50 | 100 | 10 |
| ME-4FLR-12045 | 12 | 45 | 100 | 12 |
| ME-4FLR-12050 | 12 | 50 | 100 | 12 |
| ME-4FLR-14045 | 14 | 45 | 100 | 14 |
| ME-4FLR-16050 | 16 | 50 | 150 | 16 |
| ME-4FLR-16060 | 16 | 60 | 150 | 16 |
| ME-4FLR-16070 | 16 | 70 | 150 | 16 |
| ME-4FLR-18070 | 18 | 70 | 150 | 18 |
| ME-4FLR-20070 | 20 | 70 | 150 | 20 |
ME-2BRR

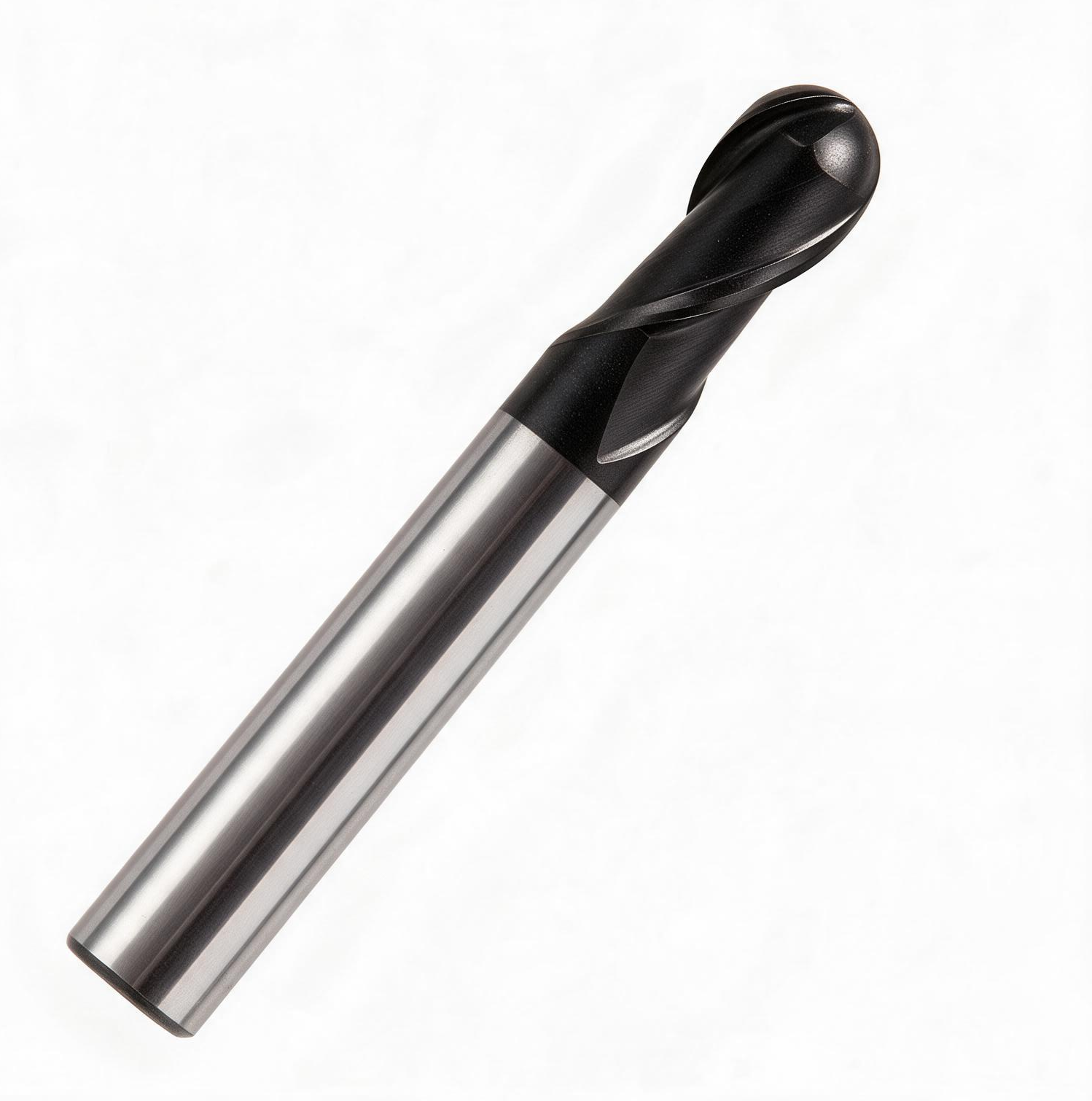

2-Flute Ballnose End Mill — Solid Carbide
Series ME-2BRR · Ballnose · Metric sizes Ø0.8–20 mm
h6Shank Tol.
2FFlutes
MCoatCoating
30°Helix
MC1220Substrate
| Ball dia. R ≤ 1.5 | 0 / −0.01 |
| 1.5 < R ≤ 3 | 0 / −0.015 |
| R > 3 | 0 / −0.02 |

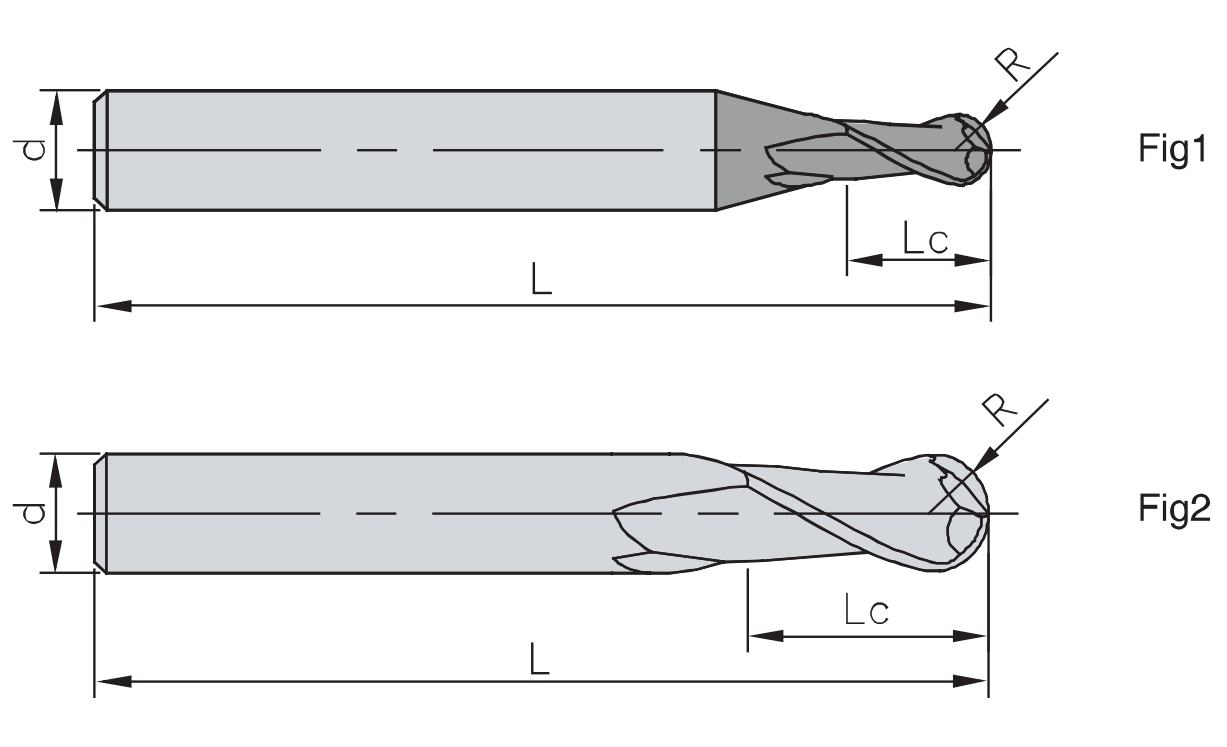

Dimensions & Part Numbers24 sizes
| Part No. | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| Mill Dia. D |
Corner Radius R |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-2BRR-00801 | 0.8 | 0.4 | 1.6 | 50 | 4 |
| ME-2BRR-00901 | 0.9 | 0.45 | 1.8 | 50 | 4 |
| ME-2BRR-01002 | 1 | 0.5 | 2 | 50 | 4 |
| ME-2BRR-01503 | 1.5 | 0.75 | 3 | 50 | 4 |
| ME-2BRR-02004 | 2 | 1 | 4 | 50 | 4 |
| ME-2BRR-62004 | 2 | 1 | 4 | 50 | 6 |
| ME-2BRR-02505 | 2.5 | 1.25 | 5 | 50 | 4 |
| ME-2BRR-03006 | 3 | 1.5 | 6 | 50 | 4 |
| ME-2BRR-63006 | 3 | 1.5 | 6 | 50 | 6 |
| ME-2BRR-04008 | 4 | 2 | 8 | 50 | 4 |
| ME-2BRR-64008 | 4 | 2 | 8 | 50 | 6 |
| ME-2BRR-05010 | 5 | 2.5 | 10 | 50 | 6 |
| ME-2BRR-06012 | 6 | 3 | 12 | 50 | 6 |
| ME-2BRR-07014 | 7 | 3.5 | 14 | 60 | 8 |
| ME-2BRR-08014 | 8 | 4 | 14 | 60 | 8 |
| ME-2BRR-09016 | 9 | 4.5 | 16 | 75 | 10 |
| ME-2BRR-10018 | 10 | 5 | 18 | 75 | 10 |
| ME-2BRR-11020 | 11 | 5.5 | 20 | 75 | 12 |
| ME-2BRR-12022 | 12 | 6 | 22 | 75 | 12 |
| ME-2BRR-13026 | 13 | 6.5 | 26 | 90 | 14 |
| ME-2BRR-14026 | 14 | 7 | 26 | 90 | 14 |
| ME-2BRR-15030 | 15 | 7.5 | 30 | 90 | 16 |
| ME-2BRR-16030 | 16 | 8 | 30 | 100 | 16 |
| ME-2BRR-20038 | 20 | 10 | 38 | 100 | 20 |
ME-4BRR
4-Flute Ballnose End Mill — Solid Carbide
Series ME-4BRR · Ballnose · Metric sizes Ø2–20 mm
h6Shank Tol.
4FFlutes
MCoatCoating
30°Helix
MC1220Substrate
| Ball dia. R ≤ 1.5 | 0 / −0.01 |
| 1.5 < R ≤ 3 | 0 / −0.015 |
| R > 3 | 0 / −0.02 |

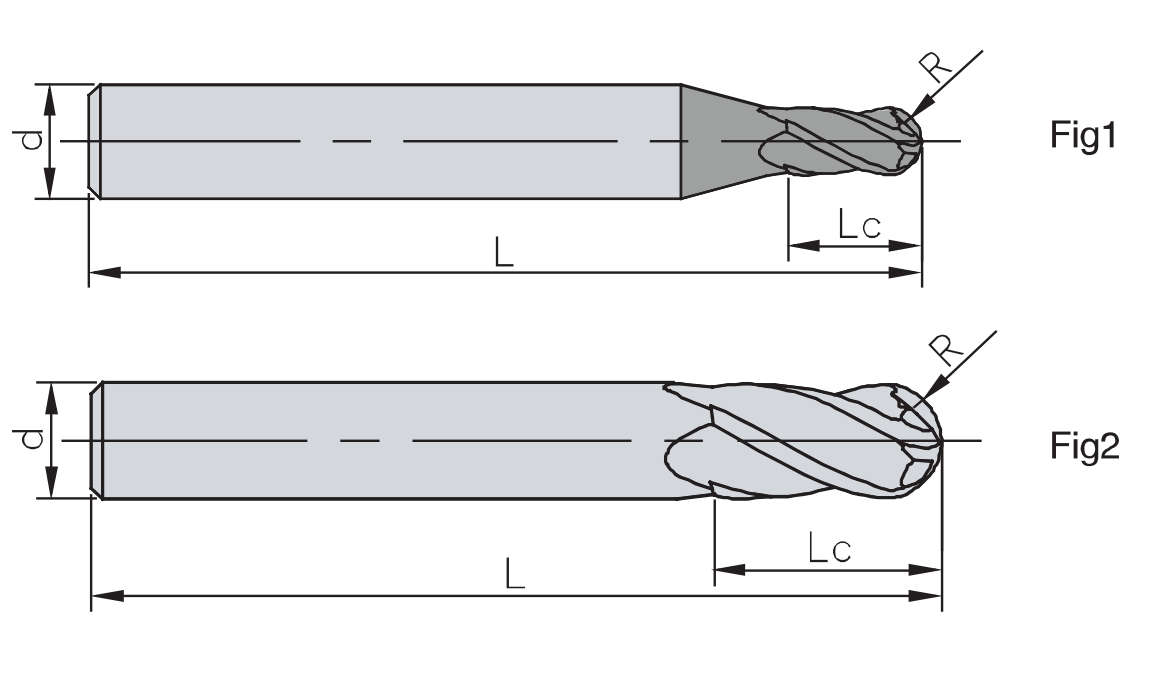

Dimensions & Part Numbers17 sizes
| Part No. | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| Mill Dia. D |
Corner Radius R |
Length of Cut Lc |
Overall Length L |
Shank Dia. d |
|
| ME-4BRR-02004 | 2 | 1 | 4 | 50 | 4 |
| ME-4BRR-02505 | 2.5 | 1.25 | 5 | 50 | 4 |
| ME-4BRR-03006 | 3 | 1.5 | 6 | 50 | 4 |
| ME-4BRR-63006 | 3 | 1.5 | 6 | 50 | 6 |
| ME-4BRR-04008 | 4 | 2 | 8 | 50 | 4 |
| ME-4BRR-64008 | 4 | 2 | 8 | 50 | 6 |
| ME-4BRR-05010 | 5 | 2.5 | 10 | 50 | 6 |
| ME-4BRR-06012 | 6 | 3 | 12 | 50 | 6 |
| ME-4BRR-07014 | 7 | 3.5 | 14 | 60 | 8 |
| ME-4BRR-08014 | 8 | 4 | 14 | 60 | 8 |
| ME-4BRR-09016 | 9 | 4.5 | 16 | 75 | 10 |
| ME-4BRR-10018 | 10 | 5 | 18 | 75 | 10 |
| ME-4BRR-11020 | 11 | 5.5 | 20 | 75 | 12 |
| ME-4BRR-12022 | 12 | 6 | 22 | 75 | 12 |
| ME-4BRR-14024 | 14 | 7 | 24 | 75 | 14 |
| ME-4BRR-16030 | 16 | 8 | 30 | 100 | 16 |
| ME-4BRR-20038 | 20 | 10 | 38 | 100 | 20 |
